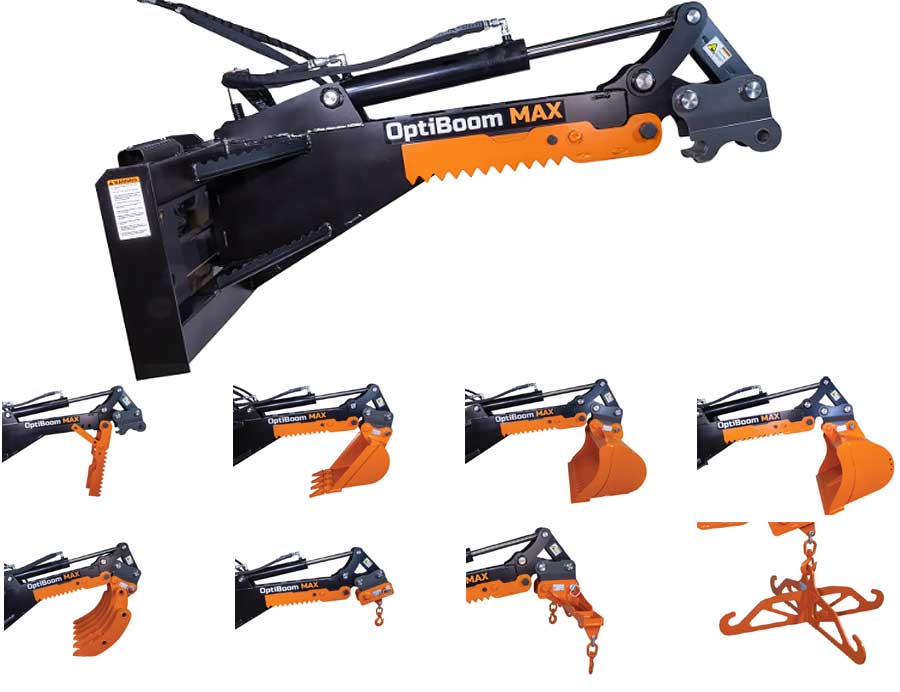

OptiBoom Max Multi Tool Backhoe Attachment | Lowe
-10% Sale ends April 30, 2025
LFHB-60
limited quantity available
DETAILS
Our new innovation's foundation is designed to lift your skid steer to new levels. Constructed from heavy-grade, Grade 50 steel with a robust box beam design and heavy-duty universal mount, it offers unmatched strength and dependability. No longer do you have to make do with compromises and restrictions—OptiBoom MAX has been designed to handle even the roughest terrain and haul even the biggest loads with ease.
| Specification | Details |
|---|---|
| Overall Length (Without Attachment) | 73" |
| Overall Height (without attachments) | 26" |
| Overall Width (without attachments) | 45" |
| Reach (without attachments) | 65.5" (machine mounting plate to attachment pivot pin) |
| Digging Depth (depends on attachment) | Up to 84" |
| Total Weight (without attachments) | 450 lbs |
| Attachment Options | Trenching buckets, ditching buckets, skeleton buckets, rake, single clevis lift, spreader bar lift, 4-point lift attachment |
features
- Rugged Heavy-Duty Build – Constructed from 5/16" side plates and 3/8" GR50 steel, engineered for superior durability and resistance to extreme wear.
- Unmatched Quick Attach System – The only skid steer boom with an advanced quick attach mechanism, enabling effortless switching between buckets, lifts, and rakes—maximizing efficiency and minimizing downtime.
- Precision-Engineered Pivot Points – Hardened sleeves and pins at every pivot point ensure long-term durability and peak performance, keeping your equipment running with minimal maintenance.
- Reinforced Front Nose Design – Modeled after commercial excavators, the reinforced nose enhances strength and performance, while the quick-attach feature streamlines workflow.
- Fast & Simple Attachment Swaps – Change attachments in under three minutes with a single pin adjustment—quick, easy, and manageable by just one operator.
- Powerful High-Pressure Cylinder – Boasts a 3,000 PSI max cylinder pressure and 4,000 lbs boom capacity, delivering the muscle needed for demanding lifting tasks.
Video
OPTIONS

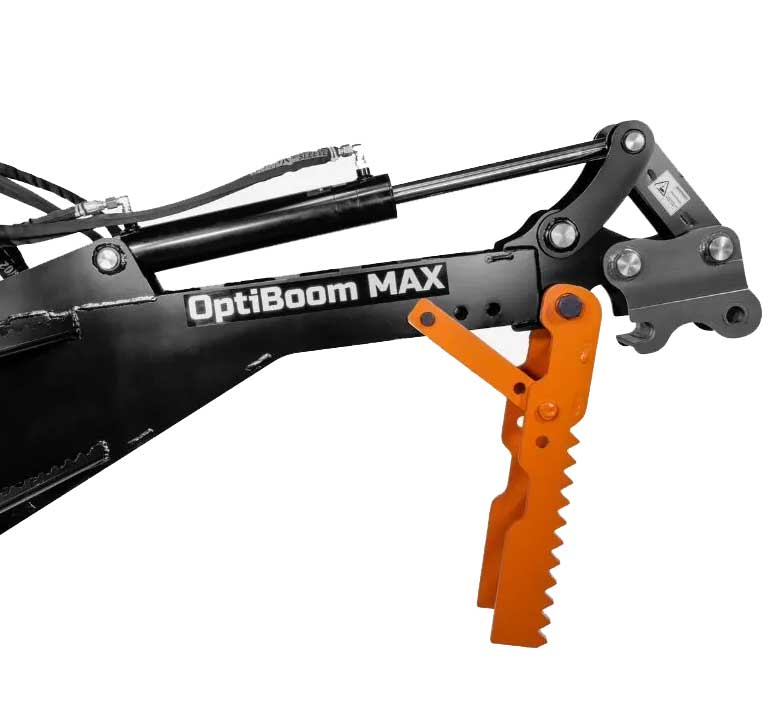

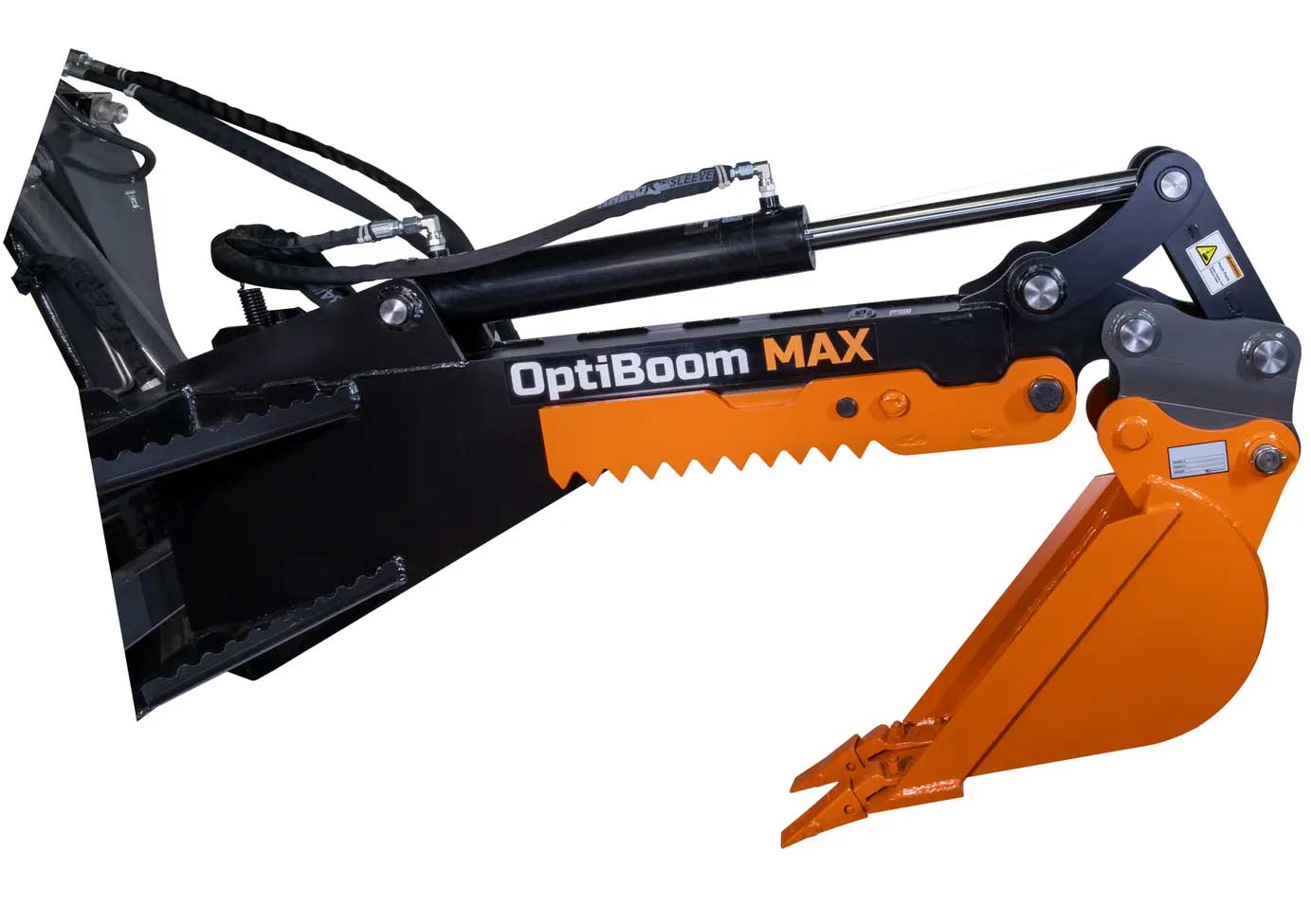

Thumb Attachment:
Multi-Position Thumb: Offers four resting positions for optimal control and rigidity.
Rapid Adjustment: Three pin settings allow for quick and precise thumb angle modifications.
Robust Construction: Built with heavy-duty ½” GR50 serrated side plates and hardened steel bushings for exceptional durability.
Compact Storage: Folds neatly against the boom, ensuring compatibility with other attachments.
Superior Grip & Lift: Capable of securely handling objects up to 24” in diameter when used with a trenching bucket.
| Specification | Details |
|---|---|
| Overall Length | 31" |
| Overall Height | 5" |
| Overall Width | 9" |
| Total Weight | 57 lbs. (Approx.) |
| Height from Boom (at 90°) | 27” (From bottom of thumbplate to base of nose plate) |
| Key Pin Positions | Front Pin Location: 22.5° (Forward), Center Pin Location: 90° (Square), Rear Pin Location: 15° (Backward), Resting Pin Location: 0° (Flush) |
| Attachment Options | Trenching bucket, rake, skeleton bucket, ditching bucket |

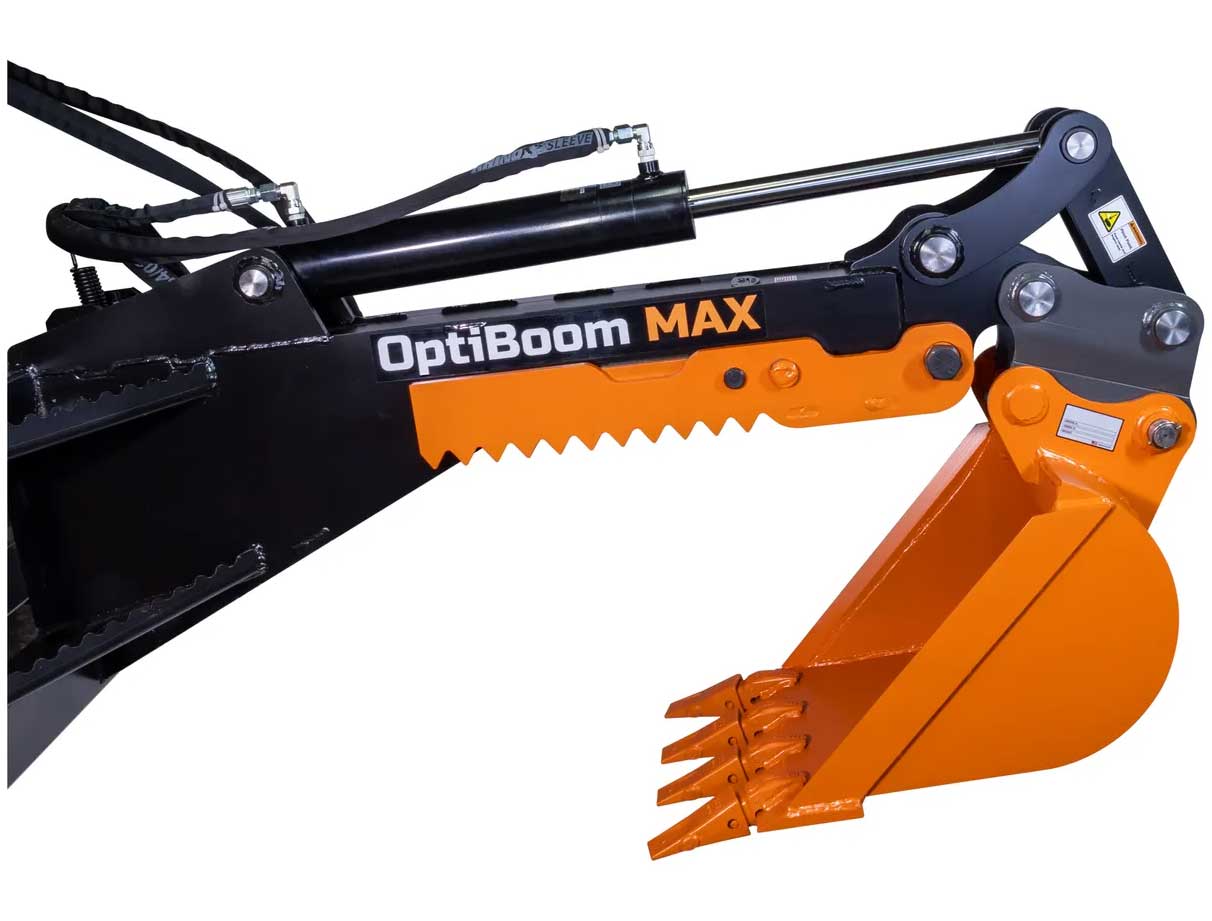

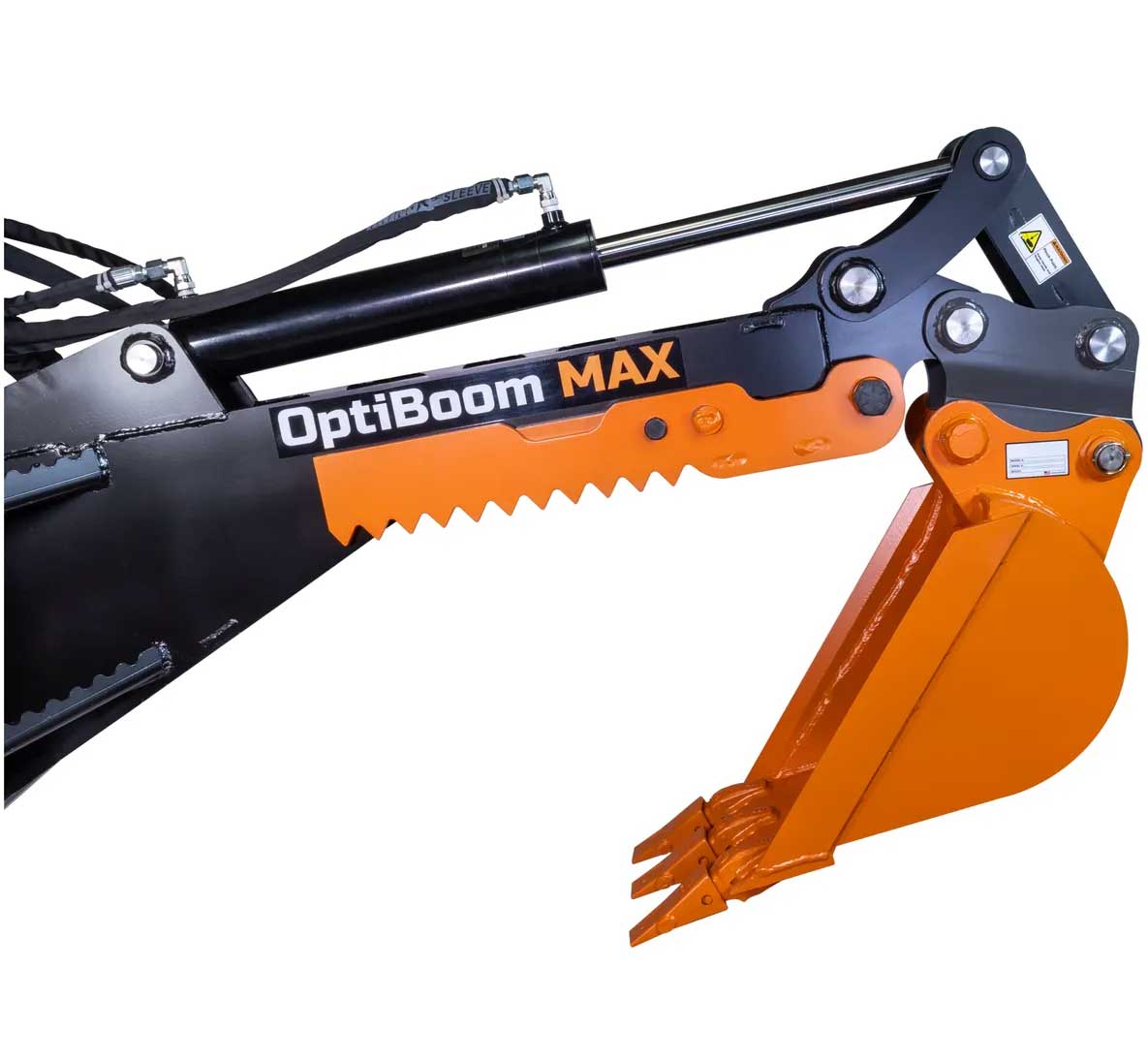

Trenching Bucket:
Versatile Tooth Attachment: Choose weld-on or bolt-on types for easy customization. With interchangeable J200 teeth, a popular choice for excavators, with shank tips welded or bolted securely to the bucket.
Reinforced Steel Bushings: Engineered with more strength to reduce wear in critical stress points.
Unmatched Strength and Wear Resistance: Constructed with ¼” GR50 steel plates that are stronger and more wear-resistant.
Bottom Cutting Edge: Available in ¾” x 6” (WOT) or ¾” x 8” (BOT) for precise digging.
Side Cutting Edge: Integrated ½” x 3” edges enable clean and accurate trenching.
Center Rib Reinforcement: Enhances structural stiffness to counteract buckling under severe conditions.
Rapid Attachment System: Replace attachments in under three minutes with a one-person, one-pin operation.
| Specification | Details |
|---|---|
| Overall Length | 35" |
| Overall Height | 23-1/4" |
| Overal Width (9" Trenching Bucket) | 9-5/8" |
| Overal Width (12" Trenching Bucket) | 12-5/8" |
| Overal Width (18" Trenching Bucket) | 18-5/8" |
| Total Weight (9" Trenching Bucket) | 145 lbs. Approx. |
| Total Weight (12" Trenching Bucket) | 165 lbs. Approx. |
| Total Weight (18" Trenching Bucket) | 196 lbs. Approx. |
| Reach on Boom | 96" from tip of teeth extended to mounting plate |
| Digging Depth | Up to 84” (7’) [213 cm] |

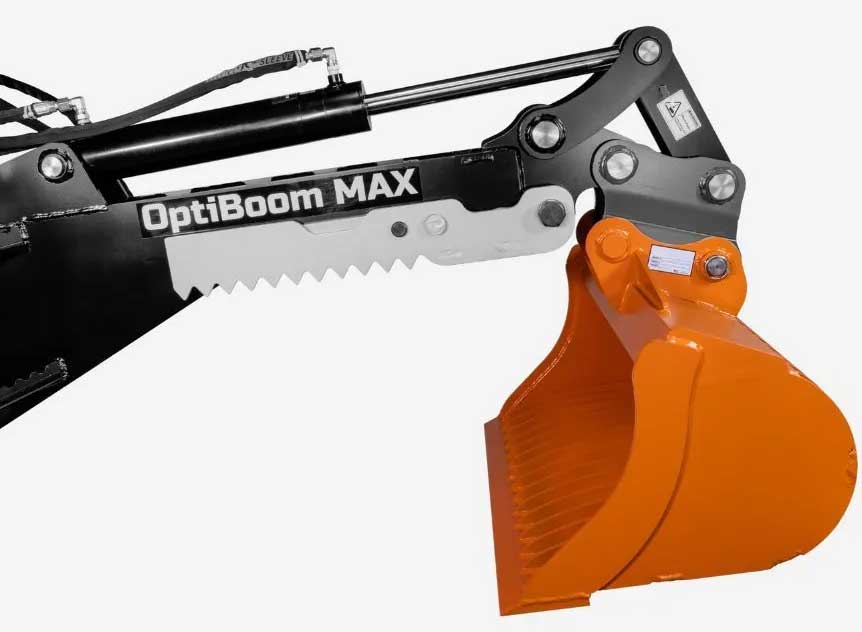

Skeleton Bucket
Heavy-Duty Construction: Engineered with 3/16” GR50 steel side plates for superior wear resistance, reinforced by 3/8” side plates for enhanced durability and extended lifespan.
Increased Stability: A welded box beneath the top hangers boosts lateral stability, preventing twisting and deformation under heavy loads.
Reinforced Structural Integrity: Top hanger gussets and center rib reinforcements fortify key stress points. The 5/16” thick center ribs with a 2-1/2” web height minimize flexing, ensuring optimal control and strength.
Optimized Sifting Efficiency: 2” rib spacing enables effective material separation, enhancing sorting accuracy while minimizing waste.
High-Performance Cutting Edge: Equipped with a ¾” x 6” bottom cutting edge, delivering exceptional durability and prolonged operational life.
Wear-Resistant Bushings: Hardened steel bushings provide superior resistance to high-stress conditions, maximizing longevity and performance.
Rapid Attachment Mechanism: Features a single-pin quick-connect system for seamless attachment and removal in under three minutes, improving efficiency and ease of use.
| Specifications | Details 36" | Details 42" |
|---|---|---|
| Overall Length | 29-1/4” | 29-1/4” |
| Overall Height | 23" | 23" |
| Overall Width | 36-3/4” | 42-3/4” |
| Total Weight | 300 lbs. | 325 lbs. |
| Reach on Boom | 88.5" (224.8 cm) | 88.5" (224.8 cm) |

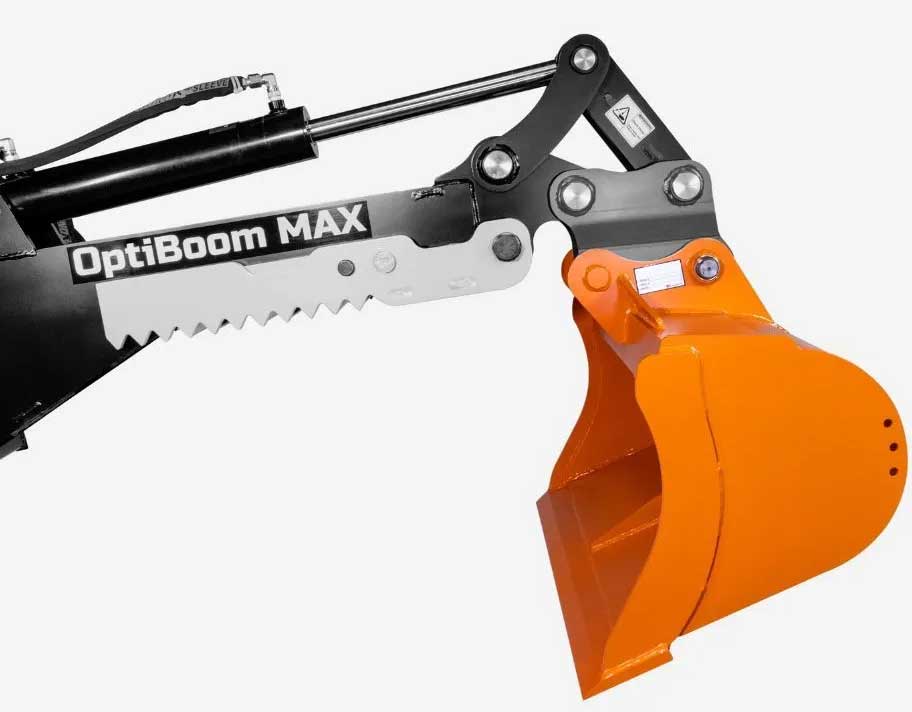

Ditching Bucket
Rugged Steel Construction: Crafted from 3/16” GR50 steel for exceptional wear resistance and durability.
Reinforced Box Frame: A welded box beneath the top hangers enhances lateral rigidity, preventing twisting and deformation under heavy loads.
Strengthened Hangers: Top hanger gussets and external center reinforcements fortify critical attachment points for added durability.
Side Plate Reinforcement: 3/8” reinforced side plates ensure structural integrity, allowing the bucket to withstand demanding tasks.
Efficient Drainage System: Center rib and end plate drainage holes facilitate fluid and slurry expulsion, maintaining peak performance.
Durable Hardened Bushings: Designed to endure high-stress conditions, these bushings enhance wear resistance, extending service life and reducing maintenance.
Robust Cutting Edge: Features a ¾” x 6” bottom cutting edge for maximum durability and prolonged operational efficiency.
Fast Attachment System: Quick and hassle-free connection using a single-pin mechanism, enabling tool changes in under three minutes with minimal effort.
| Specification | Details 36" | Details 42" |
|---|---|---|
| Overall Length | 29-1/4” | 29-1/4” |
| Overall Height | 23" | 23" |
| Overall Width | 36-3/4” | 42-3/4” |
| Total Weight | 248 lbs. | 278 lbs. |
| Reach on Boom | 88.5" (224.8 cm) | 88.5" (224.8 cm) |

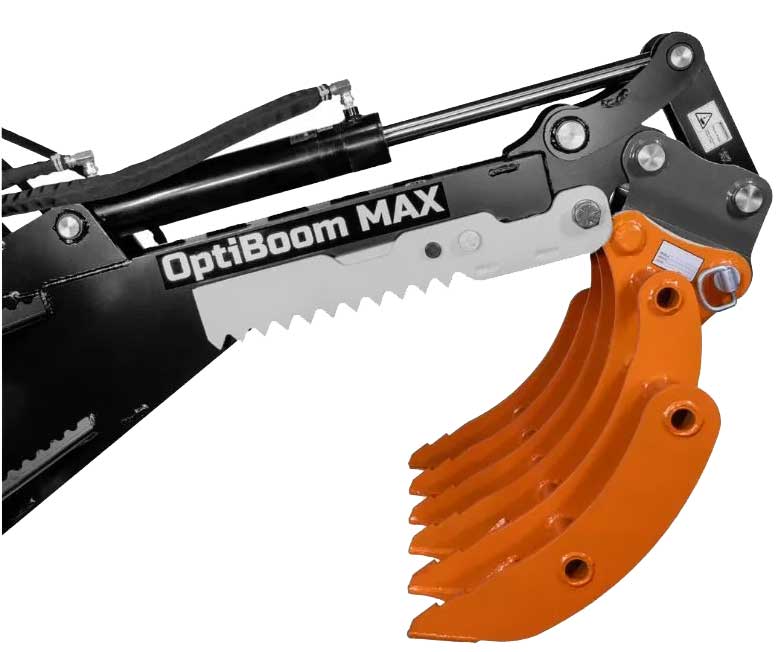

Rake
Robust Construction: Crafted from ½” thick GR50 steel on all tines, delivering exceptional strength and wear resistance.
High-Durability Bushings: Hardened steel bushings enhance longevity and withstand high-stress conditions for extended performance.
Optimized Tine Spacing: Precisely designed 6 ¼” spacing between tines allows for efficient material handling and separation.
Reinforced Cross Tubes: 1.9” diameter heavy-duty cross tubes provide superior strength and rigidity to maintain structural integrity.
Strengthened Hanger Gussets: Reinforced gussets at the pin locations eliminate flexing and ensure even force distribution.
Full-Length Welds: Continuous welds throughout the rake maximize durability and structural reliability under demanding conditions.
| Specification | Details |
|---|---|
| Overall Length | 39" |
| Overall Height | 17" |
| Overall Width | 34" |
| Total Weight | 165 lbs. (Approx.) |
| Reach on Boom | 95” (7.9’) [241 cm] (From tip of teeth extended to machinemounting plate) |

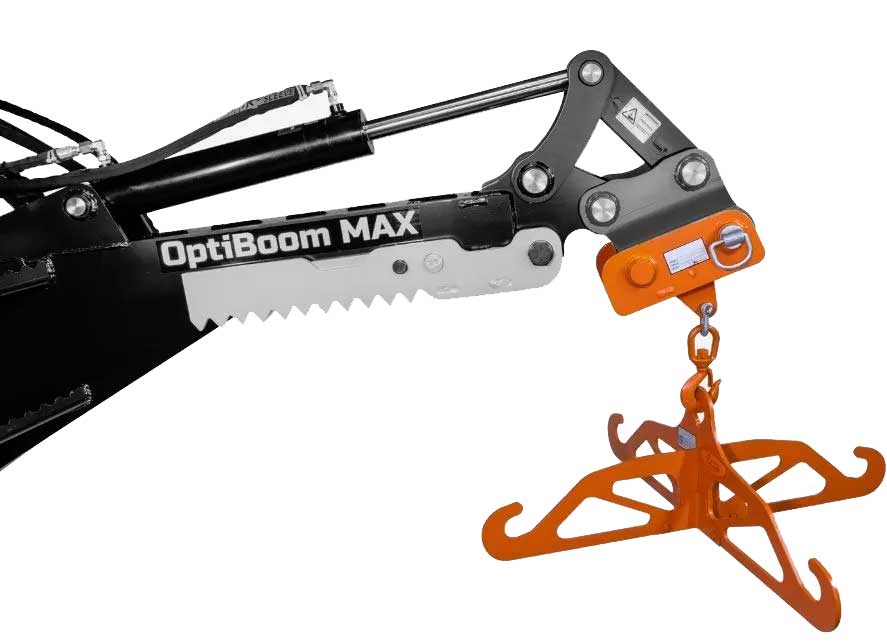

Point Liftkey
Adaptive Pivoting Mechanism: Enables flexible attachment and precise lifting control for handling various heavy loads efficiently.
Rugged Steel Construction: Manufactured from ⅜” GR50 steel plate for superior strength, durability, and long-term reliability.
High-Capacity Lifting: Supports up to 4,000 lbs. (2 tons), making it ideal for managing heavy and irregularly shaped loads with ease.
Fast and Simple Attachment: Quick-attach system allows for effortless connection, detachment, or swapping in under three minutes with a single pin.
Optimized for Multipoint Lifting: Designed for lifting bags, nets, and super sacks, ensuring even weight distribution and enhanced safety.
| Specification | Details |
|---|---|
| Overall Length | 41" |
| Overall Height | 14-1/4" |
| Overall Width | 41" |
| Total Weight | 41 lbs. (Approx.) |
| Reach on Boom | 72" from machine mounting plate |

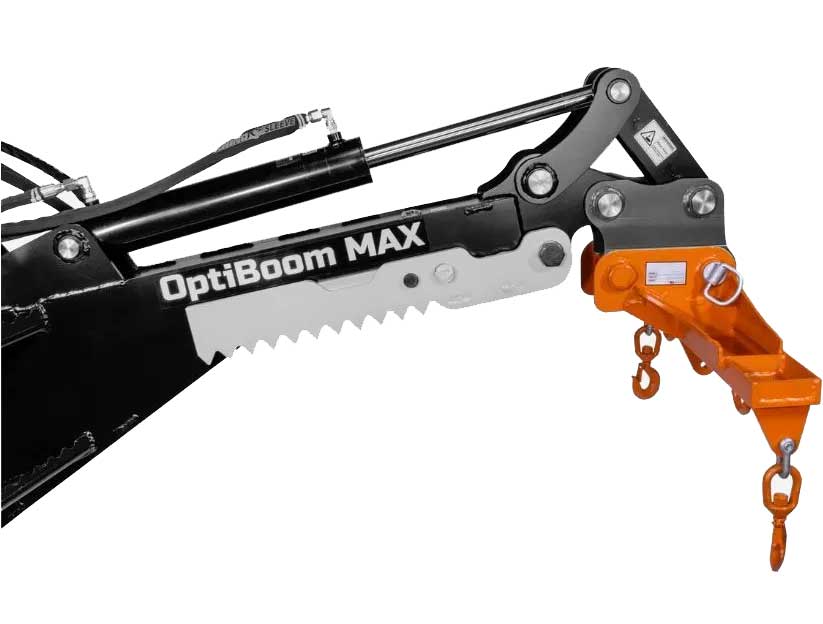

Spreader Bar
Multiple Lifting Options: Features a center welded pad eye, dual inner lifting D-rings, and dual outer hooks for versatile material handling.
High Lifting Capacity: Supports up to 4,000 lbs. (2 tons), making it ideal for heavy-duty lifting applications.
Rugged Construction: Built from 3/8" GR50 steel with reinforced C-channel for exceptional strength and durability.
Reinforced Hangers: Double-gusseted hangers enhance rigidity at lifting points, ensuring secure and stable load handling.
Flexible Mounting Options: ¾” thick pad eyes allow for various lifting configurations to accommodate different applications.
Quick-Connect System: Attaches and detaches in under three minutes using a single-pin mechanism for fast and efficient operation.
| Specification | Details |
|---|---|
| Overall Length | 12.5" |
| Overall Height | 20-1/4" |
| Overall Width | 40" |
| Total Weight | 85 lbs. |
| Reach on Boom | 72" from machine mounting plate to hooks |

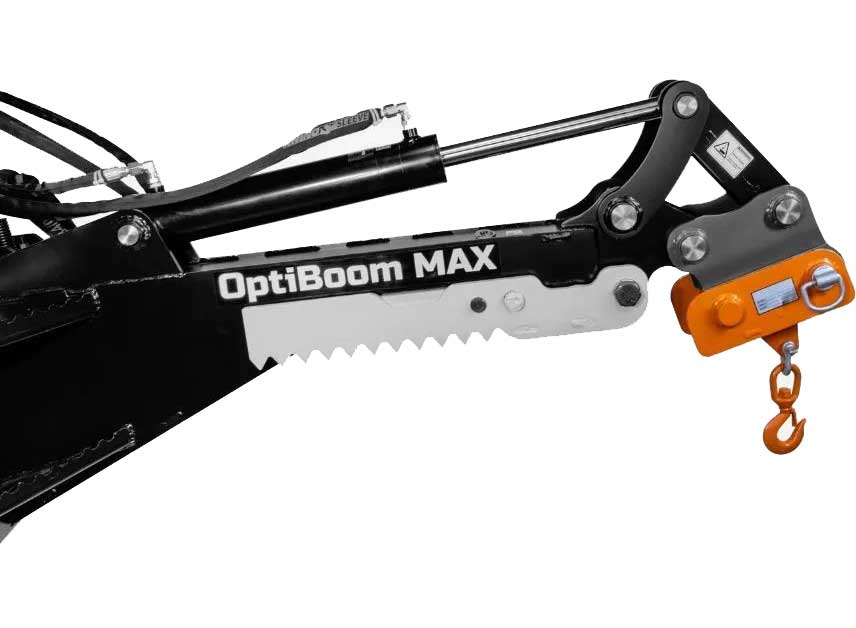

Single Clevis
High Lifting Capacity: Supports up to 4,000 lbs. (2 tons), making it ideal for lifting heavy loads with ease.
Compact & Stable Design: Engineered for precise control, ensuring secure and steady lifting operations.
Heavy-Duty Construction: Built with 3/8” GR50 steel plates, hardened steel bushings, and a ¾” thick pad eye for superior wear resistance and durability.
Versatile Lifting Hook: Includes a 2-ton WLL hook with a clasp and shackle, accommodating a wide range of lifting applications.
Reinforced Hanger Design: Double-gusseted hangers enhance rigidity at critical load-bearing points for increased strength and reliability.
Fast & Easy Attachment: Quick-attach system allows for effortless connection and detachment in under three minutes using a single pin.
| Specification | Details |
|---|---|
| Overall Length | 16" |
| Overall Height | 10" |
| Overall Width | 7-1/4" |
| Total Weight | 30 lbs. |
| Reach on Boom | 72" from machine mounting plate to hook |

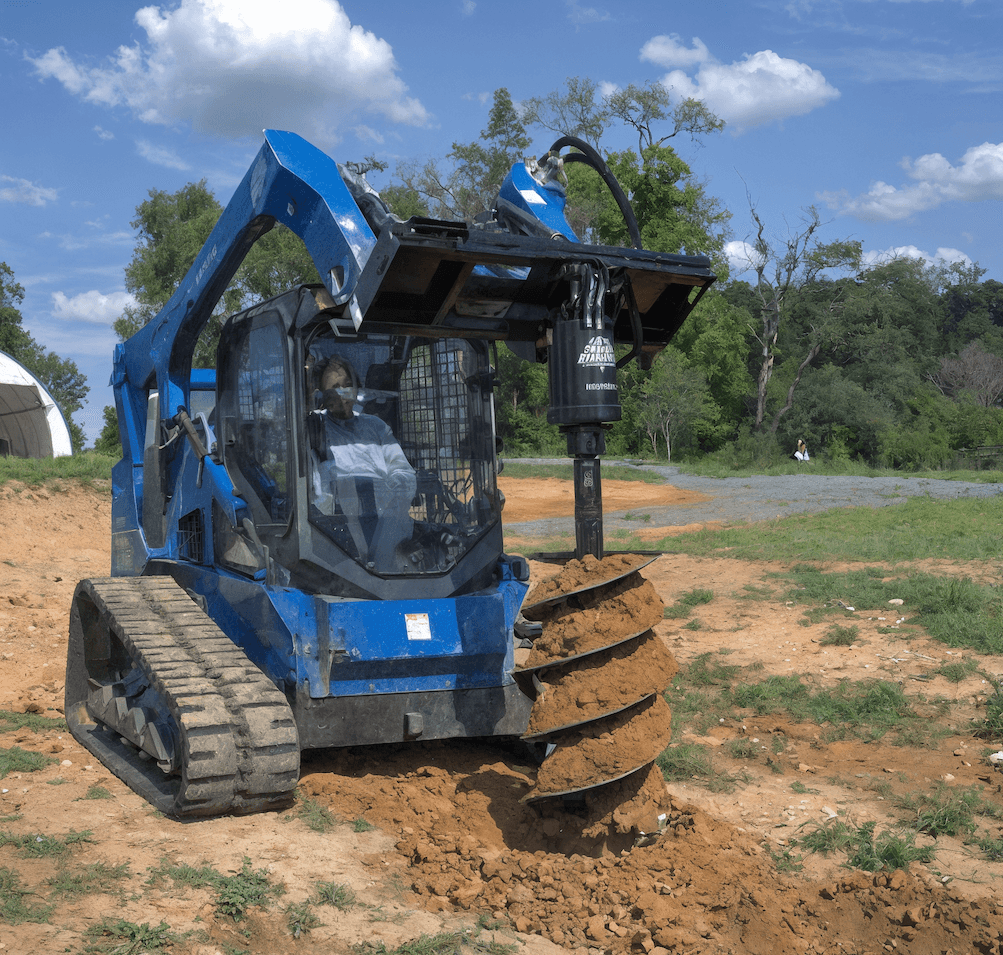

The Blue Diamond® Extreme Duty Series 2 Auger is engineered for operators who demand maximum power and consistency. Thanks to its high-torque, compact gearbox, this auger delivers impressive drilling performance even in the most challenging soil conditions. The gearbox descends into the hole, allowing for deeper penetration without sacrificing stability or speed. This innovative design reduces downtime, increases efficiency, and ensures that every hole is drilled with precision. Whether you’re tackling post hole projects, tree planting, or heavy construction work, the Extreme Duty Auger gives you the confidence to handle it all.
Constructed with a heavy-duty two-piece shaft, the Blue Diamond auger is built to endure extreme side loads and the wear that comes with high-demand applications. Its rugged engineering means you can push it harder, day after day, without worrying about premature breakdowns. Premium materials and precision craftsmanship guarantee durability that goes far beyond standard augers. Landscapers, fencers, contractors, and farmers rely on this tool to perform in dirt, clay, or compacted soil — and it never disappoints. If your projects demand reliable equipment that won’t quit, this auger is the partner you need on every jobsite.
When you choose the Blue Diamond Extreme Duty Auger, you’re investing in peace of mind as well as performance. With an unmatched warranty package — 5 years on the gearbox, 3 years on the hydraulic motor, and a lifetime guarantee against shaft pull-out — you know this tool is designed to last. Proudly made in the USA, every unit reflects the quality, precision, and durability that professionals expect from American engineering. This auger is more than just a piece of equipment; it’s a long-term solution that brings real value to your business by reducing downtime and increasing productivity.
You just added this product to your cart
OptiBoom Max Multi Tool Backhoe Attachment | Lowe
Price:
Total:
Blue Diamond 6000 LB Rated Forks - Quality Forks at a Great Price
The Blue Diamond 6000 LB Rated Pallet Forks are a great tool to have. They are made with quality and durability in mind. The tall frame is very useful when you have to rest a pallet on the frame of the forks. The added D-ring is very helpful to attach anything I need to drag with the forks as well. These forks are a welcome addition to my collection.
Blue Diamond Hydraulically Adjusting Pallet Forks - Pick up Anything You Want With These Forks
The Blue Diamond Hydraulically Adjusting Pallet Forks help me out with picking up anything I want. The forks can be adjusted from the cab of my machine so if I'm working with different sized pallets I can move them fast and easy. These forks are high quality and save me a lot of time. Even if something is not on a pallet, I can squeeze the forks together from the cab to pick it up. Matt G.
Friendly Service
Great products The guys at SkidSteers.com helped me find the quality I wanted at the price I needed - give them a try.
FAST SERVICE IS KEY
When I order tracks from SkidSteers.com, I know I can count on a quick turnaround - when your equipment is down, you just can't have delays - excellent quality tracks - fast reliable service.
6 Way Log Splitter - Best Investment
I can honestly say that our 30 ton skid steers.com splitter is probably our best investment yet. As a small, family owned firewood business, it has really sped up the process for us. We no longer have to struggle to move large rounds. It has no problems splitting thru rounds of any species. For boiler wood, it can make the perfect size pieces. For our firewood, we tend to split smaller so we will drop the pieces next to our smaller splitter. For the amount of wood we split each year with it, it has not let us down yet.
Blue Diamond Extreme Duty Brush Cutter
Clearing property for a new house. Tried out the Blue Diamond Extreme Duty Brush Cutter. The Brush Cutter did a great job easily clearing a fencerow. Plan on using it to clear out a lot for our new home.
Blue Diamond Low Flow Severe Duty Brush Cutter - This thing is a beast!
Using the Severe Duty Cutter with a Cat 289D Low Flow and this thing is a beast. We used it to cut down and mulch up trees from 4" to 6" in diameter. This was for lot clearing to building future multi-family housing. It knocked everything down and chewed it up. Very happy with the performance of this unit.

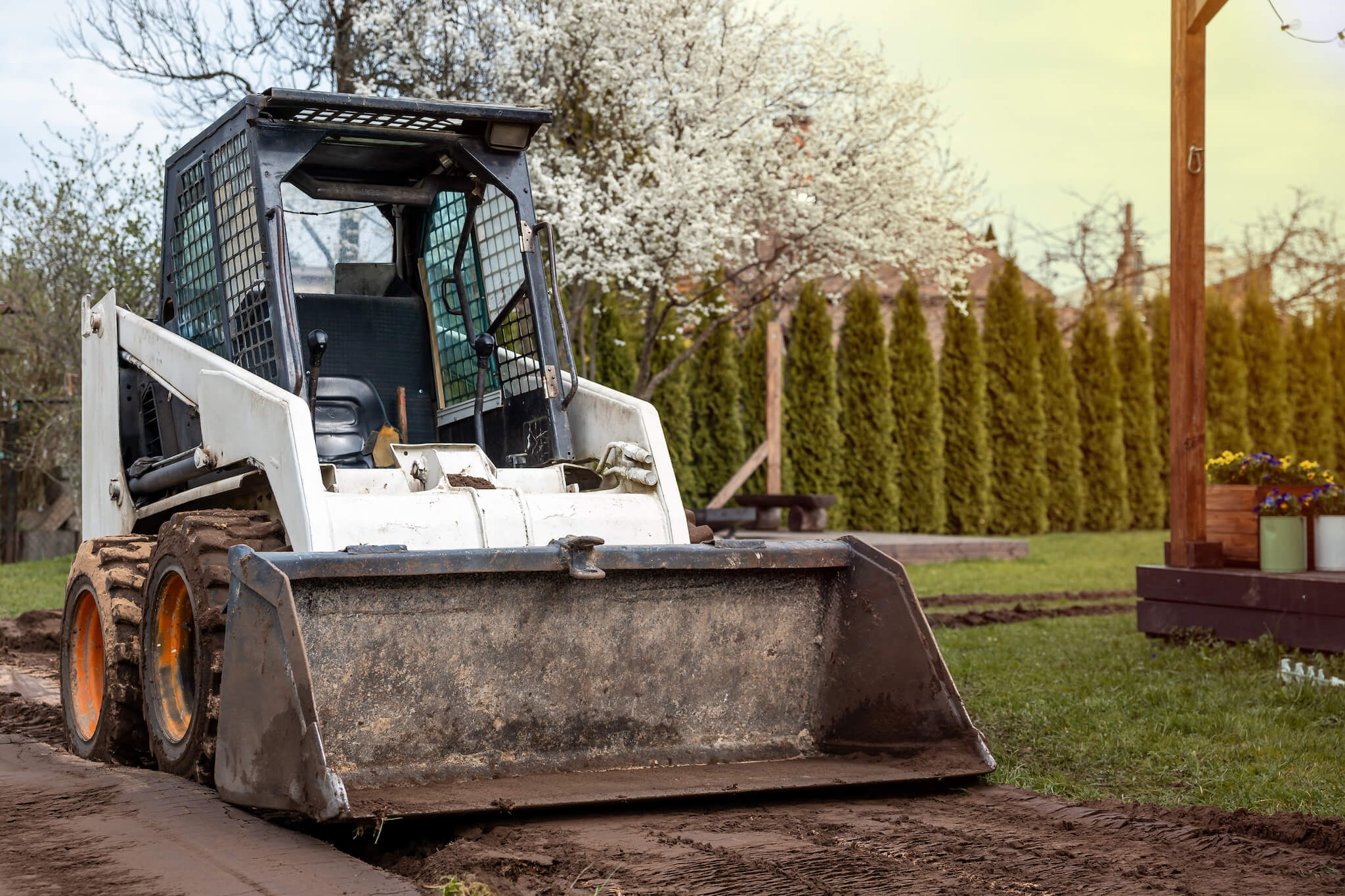

Skid steer loaders are essential on most construction sites. They probably are the most used piece of equipment in the industry. Along with the portability of the machine, they can be used throughout the job doing many different tasks, from material handling to land clearing. There are literally hundreds of attachments made for a skid loader. Some applications include digging holes, breaking up concrete, trenching, auger drilling, and plowing. The number of applications that they can be used for is incredible, especially when equipped with the right attachments from trusted brands.
